High-performance compression garbage truck
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system.
The whole vehicle is fully sealed,All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
Specification
Functional Description:
The 14-cubic-meter container is used for loading household waste and consists of a sealed trash bin, filler, pusher blade, hydraulic transmission system, and electrical control system. The fully enclosed vehicle utilizes integrated electro-hydraulic technology. Leveraging a combined mechanical, electrical, and hydraulic automatic control system, the bin, filler, and pusher blade utilize specialized devices to dump, crush, flatten, and lift waste, squeezing it into the vehicle compartment for compaction and unloading. Wastewater generated during the compression process flows into the wastewater compartment, eliminating secondary pollution during waste transportation. Users can choose from a variety of tipping mechanisms to suit different waste collection methods: standard iron bins (ZBT59003-88) (300L), plastic bins (240L), plastic bins (660L), and plastic bins (1100L). Optional tilting mechanisms include a triangular bucket, large floor-standing bin, and swing-arm bins. An optional pneumatic sealing cover is also available.
Key Configurations
1. The housing utilizes a sturdy frame structure welded from reinforced beams and high-strength steel plates.
2. The housing welds utilize a domestically pioneering robotic automated welding process.
3. Key components of the electrical and hydraulic systems utilize a Siemens PLC control system.
4. All cylinder seals are imported from the UK, using the HALLITE brand to ensure long cylinder life.

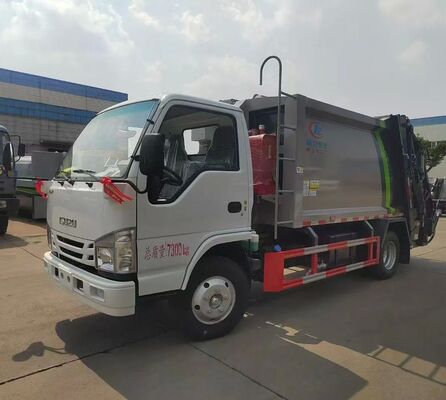

right elevation

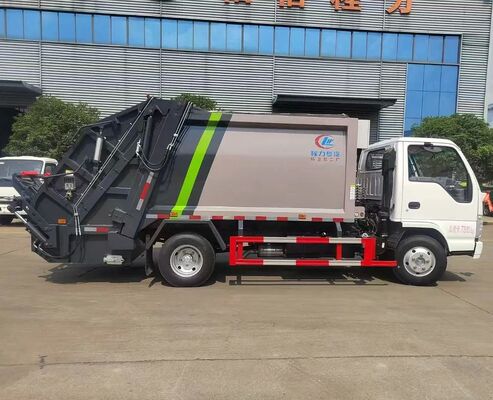

left elevation

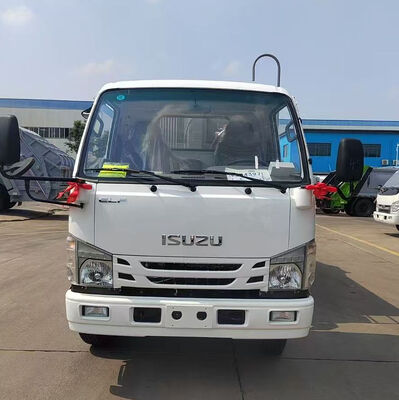

front elevation
Technical Specifications
(Custom configurations available upon request.)
Model | CLW5070ZYSQ6 | Product Name | Compressed Garbage Truck |
Gross Mass (Kg) | 7300 | Overall Dimensions (mm) | 6650×2050×2750 |
Curb Mass (Kg) | 5300 | Wheelbase (mm) | 3360 |
Trash tank capacity (m³) | 6 | Tire Specification | 7.00R16LT |
Number of Tires | 6 | Engine Model | 4KH1CN6LB |
Fuel consumption(L/100Km) | 16.12 | Max speed(km/h) | 95 |
Power (Kw) | 88 | Horsepower(PS) | 119 |
Decomposition Diagram of Compressed Garbage Truck
1.Packer Lock Hook: The lock hook device has a firm structure and is adjustable, ensuring a tighter gap between the packer and the box.
2.Back Pressure Valve: Two-way compression increases the compression ratio of loaded garbage and improves the garbage load capacity.
3.Hydraulic Oil Tank: It has a triple filtration function, stores the oil needed for the system circulation, and dissipates the heat generated when the system is working.
4.Multi-way Valve: Adopts Jiangsu Zhongmei/Weisenbole hydraulic valve, with high precision and stable performance.
5.Hydraulic Oil Pipe: Uses high-precision high-pressure oil pipe, which is resistant to high pressure and corrosion, and has a long service life.
6.Hydraulic Cylinder: Uses well-known Boli/Feida brand cylinders.
7.Proximity Switch: Uses a photoelectric induction switch to switch actions, reduce cylinder pressure, and make the electronic control system more stable.
8.Integral Nylon Slider: Integral nylon slider, strong and wear-resistant, with self-lubricating function, and long service life.
9.Rear Lighting: Convenient for operation at night or when the light is poor.
10.Sewage Tank (at the rear): Installed at the bottom of the packer to prevent secondary pollution during transportation; the sewage tank is made of galvanized material, which is corrosion-resistant and durable.
11.Rear Tipping Mechanism: New roller structure, low resistance, smoother operation, and can hang 120L, 240L or 660L trash cans at the same time.
12.Remote Control Device: Remotely control the loading and unloading of garbage, more intelligent and more humanized.
13.Electronic Control Device: Adopts Siemens PLC or CAN bus electronic control system, which is convenient to operate and simple to use.
14.Balance Valve: Ensure the synchronous action of the cylinder, prevent the oil pipe from bursting, and ensure the safe operation of the packer.
15.Arc-shaped Box: Adopts robotic automatic welding, the box structure is more stable, and the weld is beautiful without scraping ash.
16.Sewage Tank (on the side): Side-mounted large-capacity sewage tank, which can hold more sewage and has a cleaning port.
After Sales Service
Standard Warranty: 12 months or 30,000 km (whichever comes first).
Extended Warranty: Optional warranty up to 36 months.
Global Support: 24/7 technical support and spare parts availability.
Training: On-site or remote operation/maintenance training.
